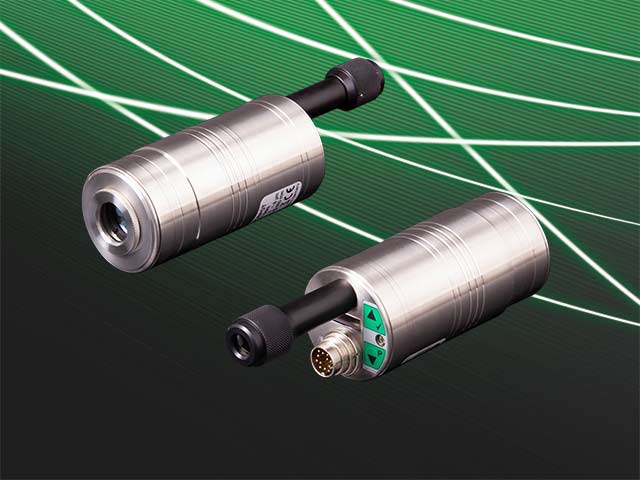

德國DIAS紅外公司擴充了紅外測溫儀的型號，目前推出的是PYROSPOT 55系列紅外測溫儀。緊湊型數字式紅外測溫儀55系列具備不銹鋼外殼(IP65，直徑50mm)，用于工業測溫。測溫范圍>75°C，適合金屬、石墨或陶瓷等物體測溫，最快響應時間為2ms(t95)，可用于快速運動的物體測溫。在該系列紅外測溫儀的后蓋上，有一個清晰刻度的OLED顯示器及2個控制按鍵，用于顯示被測溫度及調整紅外測溫儀參數。
Different optics for small target sizes小目標用不同的光學系數
有3種固定固定焦距，最小可測目標直徑為0.8mm，距離系數最大300:1。 As a special feature, instead of the fixed optics, a vario optics with motorized focus is optionally available in this pyrometer series. The user can easily adjust the focus using the control buttons on the device or via interface and software.
Always perfectly aligned總是精確瞄準
The exact alignment of the pyrometers on the measurement object is possible with an integrated laser aiming light or an optical through-lens sighting. Alternatively, an integrated color video camera can be used. This video camera facilitates installation in difficult local conditions, where the pyrometer is difficult to reach or the measurement object is not visible.
Local networks局域網
With the temperature linear standard output signal of 0/4 to 20 mA, the pyrometers can be easily integrated into existing measurement and control systems. The pyrometers have also a galvanically isolated RS-485 interface. Therefore the devices are bus compatible and use the Modbus RTU protocol. Connection in local networks can be supported by an Ethernet interface box.
The PYROSPOT DS 55N and DG 55N are suitable for temperature measurements from 550 °C to 3000 °C (spectral range 0.8 µm to 1.1 µm) or 200 °C or 2500 °C (spectral range 1.5 µm to 1.8 µm) respectively. The pyrometer DGE 55N can measure temperatures between 75 ° C and 2200 ° C (spectral range from 2.0 µm to 2.6 µm), with a particularly “long” continuous measuring range from 150 ° C to 2200 ° C. The ratio pyrometer PYROSPOT measures temperatures from 500 ° C to 3000 ° C in two closely spaced spectral ranges between 0.7 μm and 1.1 μm and enables almost emissivity-independent temperature measurement.
The pyrometers can be parameterized via the digital interface with the PYROSOFT Spot software. Alternatively, the emissivity or ratio correction parameter and motor focus can also be set directly on the device using the buttons and the display.
更多信息:
- 德國DIAS紅外公司PYROSPOT系列紅外測溫儀
- PYROSPOT Series 55 系列紅外測溫儀更多信息
更多信息請聯系我們。
